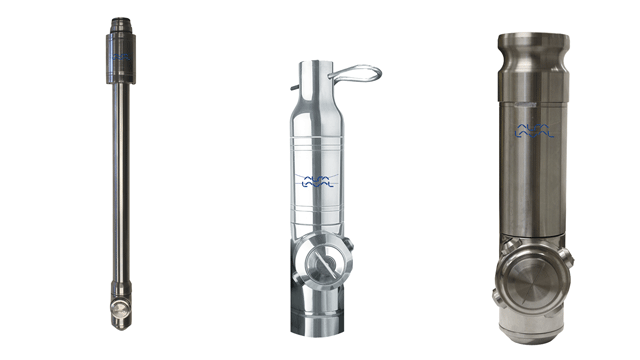

The Alfa Laval GJ A product line offers tank cleaning devices that deliver powerful, efficient, hygienic cleaning for companies within the food, beverage and personal care industries. They are ideal for retrofit applications to replace resource-heavy static spray balls and costly manual cleaning. Features of the GJ A includes self-cleaning and self-draining capabilities and the ability to clean tanks through openings as small as a 5cm (2”).
A quality product
The Alfa Laval GJ A tank cleaning devices are part of our highly acclaimed Gamajet product range. Alfa Laval technology combines pressure and flow to create high impact cleaning jets that are precision engineered to rotate in a precise, repeatable and reliable 360-degree pattern.
Positive return on investment
The unique design reduces your cost to clean and environmental footprint by minimizing the amount of water, energy and cleaning agents required to clean tanks. Using high-impact jet cleaning instead of traditional ineffective static spray ball reduces waste and resource consumption.
Retrofit old spray ball
The Alfa Laval GJ A product line fits through openings as small as 5 cm (2”) and is ideal for retrofit applications to replace resource-heavy static spray balls through existing tank top connections. Features of the Alfa Laval GJ A product line include self-cleaning and self-draining capabilities.
- Fast cleaning time = More production time.
- Reduces water and resource usage, leading to reduced cost to clean.
- Eliminates the need for confined space entry for manual tank cleaning.
- Durable and reliable, rotary jet heads are proven to boost cleaning efficiency by providing reliable and repeatable cleaning performance.
- Cleaning process can be validated using Alfa Laval RotaCheck
How it works
High-impact, low-resource cleaning
The high-impact jet stream from the rotary jet head is preprogrammed to cover the inside of the tank in a continually denser pattern. This achieves a powerful mechanical impact with a low volume of water, acid or caustic. Most of the Alfa Laval GJA rotary jet heads are capable of operating at both high and low pressures.
A faster tank cleaning cycle also cuts energy consumption. Cleaning fluid flows through the nozzles in an automated, geared rotation around the vertical and horizontal axes. In the first cycle, the nozzles lay out a coarse pattern on the tank surface, with subsequent cycles progressively densifying the pattern over the course of eight cycles.
Part of a broad industrial tank cleaning range
Alfa Laval offers a comprehensive range of tank cleaning equipment intended for industrial applications such as fertilizers, inorganic chemicals, petrochemicals, biofules, oil and gas, home care, paper production, pulp production and steel production.
- Alfa Laval GJ 4
- Alfa Laval GJ 7
- Alfa Laval GJ 8
- Alfa Laval GJ 9
- Alfa Laval GJ 10
- Alfa Laval GJ PF
- Alfa Laval GJ BB
For a broader tank cleaning range, explorer the different product categories: TJ, T/TZ , MultiJet and SaniJet.
Ten top tips - Tank Equipment
Here are some tips and service videos to show you how you can keep your tank equipment in tip top condition.
Alfa Laval's hygienic equipment product catalogue "Close at hand" includes product leaflets, performance curves, links to animations, brochures and price lists for ordering purposes.

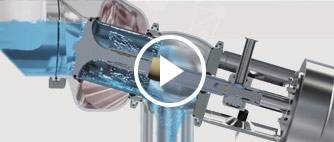

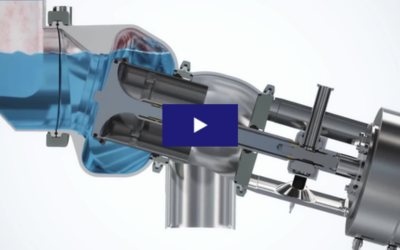

Visit the animations site and take a look inside a product to see and understand how it works.
Download the product models in Neutral or Native CAD file formats. It is also possible to download 3D PDF files.
