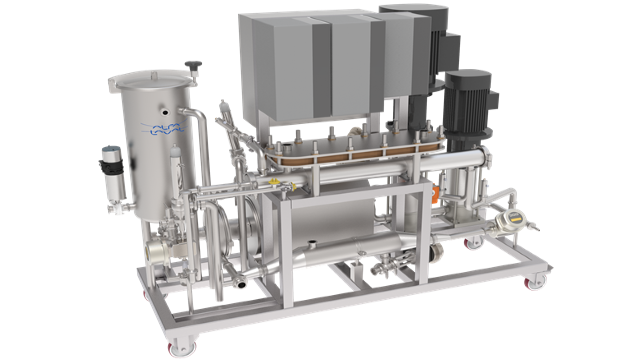

The Alfa Laval PilotUnit Multi is a multipurpose system with a broad selection of options that makes it possible to test all different kinds of membrane filtration products for microfiltration, ultrafiltration, nanofiltration and reverse osmosis in batch or semi-batch mode. It is an ideal tool for easy and reliable scale-up of processes or even small-scale production.
Fully integrated, space-saving and state-of-the-art filtration system with broad selection of options
- Easy to use – fully integrated system on a wheeled stainless steel structure. Data logging included and easy access via USB
- Compact and robust – comprises housing for single 3.8" spiral membrane, 40 l tank, pump, heat exchanger, valves, instruments and control system
- Low hold-up volume for high product concentration and minimal test media amount
- Flexible – pump system can handle low to high viscosity solutions and operates with the whole range of feed spacers (30-80 mil).
- Adaptable – suitable for pHt™ membranes with high temperature and pH tolerance
Alfa Laval PilotUnit Multi has a flexible membrane area (3–7 m²) and can handle volumes between 50 and 500 l. The basic unit is available with a number of options, including online monitoring and data collection, to enhance the performance of your membrane filtration process. You can double the spiral membrane area by adding another housing, while the addition of an Alfa Laval LabStak™ M39H module enables you to simultaneously test different MF/UF flat sheet membranes (0.2 – 1 m²). If you want to test our membrane filtration products for nanofiltration and reverse osmosis you will require extra pumps to boost the pressure to 40 bar.
The basic technology behind membrane filtration involves using a semi-permeable membrane to separate a liquid into two distinct streams.
Pumping this liquid across the surface of the membrane creates a positive trans-membrane pressure that allows any components smaller than the porosity of the membrane to pass through, forming the permeate.
Any components larger than the pore size simply cannot pass through, and remain behind in what is called the retentate. The surface of the membrane is kept free of blockages by the force of the liquid flow moving parallel to the membrane surface.
How it works
The feed stream/retentate flows through the open channels across the membrane surface in the plate-and-frame unit.
The membrane is supported by hollow plates with numerous slots that allow the permeate to be collected and removed from the unit via the permeate collecting tubes.
Plate-and-frame units use the membrane itself, aided by lock rings or strips, to seal off the feed/retentate and prevent any mixing with the permeate. This also prevents leaks from the plate stak itself.
Services to extend your equipment performance
We support you with all types of services and training required for high performance and maximal ROI throughout the lifespan of your investment. With Alfa Laval as your service partner, you ensure reliable uptime and high efficiency while keeping total cost of ownership to a minimum.
