Alfa Laval - Pharma-line

Pharma-line

Alfa Laval Pharma-line is a high-quality tubular heat exchanger for the pharmaceutical and biotech industries. The leak-proof design and smooth surface finishes help protect against contamination and is ideal for the strictest hygienic conditions in applications such as Water-for-Injection (WFI), heating and cooling Purified Water (PW) and product heating/cooling. The shell and tube heat exchanger can be mounted on the floor, wall or ceiling and is compliant with USP and cGMP requirements.

阿法拉伐 Pharma-line 制药用壳管换热设备-Alfa Laval Pharma-line shell and tube heat exchange equipment for pharmaceuticals

Superior materials and hygienic design, embodying decades of experience in pharma

  • Double-tube sheet(DTS) avoids risk of cross-contamination
  • Very low risk for cracks and thermal fatigue as U-shaped tubes accommodate thermal expansion
  • Fully drainable heat exchanger, no dead areas and seamless, smooth crevice-free design with max 0,5µm surface roughness
  • Fully customizable owing to smart flexible design of feet and mounting options
  • Small footprint - U-tubes decrease the length of our hygienic heat exchanger by half

The Pharma-line shell and tube heat exchanger is designed to operate at pressures up to 10 bar and operating temperatures of 150°C. It is easy to drain and clean and features leakage detection. It is fully drainable on the product side, with no dead spots and has vent and drain possibilities on the utility side. The hygienic heat exchanger also comes with a high-quality documentation package as standard.

How it works

.

Pharma-Line - How it works

You might also be interested in...

Pharma X

A compact tube-in-tube heat exchanger module developed for point of use cooling in pharmaceutical water systems. Alfa Laval Pharma-X is designed to remain sanitized even when not in use (standby mode).

pharma-line-point-of-use-pneumatic-front 640x360

Tank cleaning equipment

Using the right tank cleaning device can significantly reduce downtime, while using fewer resources such as water, cleaning agents and energy. Our devices are also designed to increase plant safety by eliminating confined space entry for manual tank cleaning.

rotary jet heads 640x360

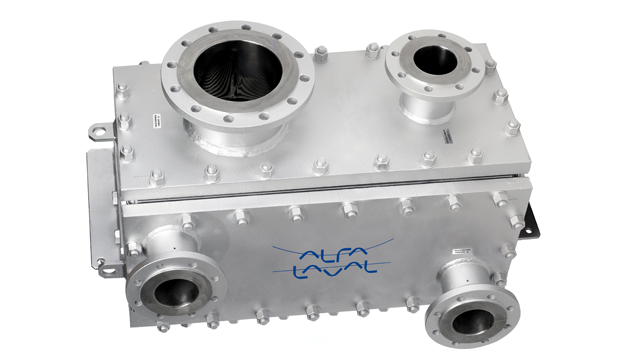

Compabloc Free Flow
