Alfa Laval - Aalborg MPF Multi Fuel

Aalborg MPF Multi Fuel

The Aalborg MPF (Marine Para Flow) burner for dual-fuel firing of MDO, HFO, crude oil and fuel gas comes in roof orwall-fired designs. A low emission marine burner variety, Aalborg MPF-LE (LE for low emissions), is also available.

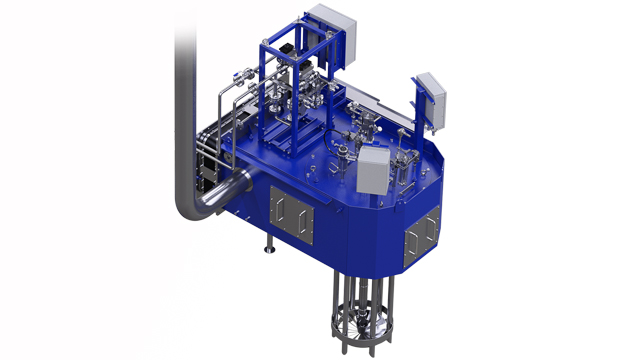

Aalborg MPF 640x360 large

The Aalborg MPF (Marine Para Flow) burner comes in roof or wall-fired designs, capable of handling MDO, HFO, crude oil or fuel gas in single fuel or simultaneous firing operation.

The burner assembly is provided as a complete module, incorporating dual redundant flame scanners, gas ring manifold and gas canes, oil gun and air register with all electrical components pre-cabled to the front plate-mounted junction box.In addition, all instrument air users are pre-tubed (SS) to a common manifold and regulator, also mounted on the frontplate.

Application specific designOur burner designs are application and project specific. They are based on proven designs combined with advanced com-bustion tuning via computational analysis.

Capacity range: 5 – 46 MW

Combustion

The burner assembly is provided as a complete module, incorporating dual redundant flame scanners, internal gasring, oil gun and igniter with all electrical components pre-cabled to the front plate mounted SS junction box.

In addition, all instrument air users are pre-tubed (SS) to a common manifold, also mounted on the burner.

Burner features

  • Wide turndown range

  • Low excess air operation

  • Low atomizing steam consumption

  • Retractable oil gun

  • Capability of burning all grades of gaseous and liquid fuel oils
  • Output of up to 46 MW

  • No/low particulate emissions
  • Ambient or preheated combustion air

  • Retractable air register (multiple burners)

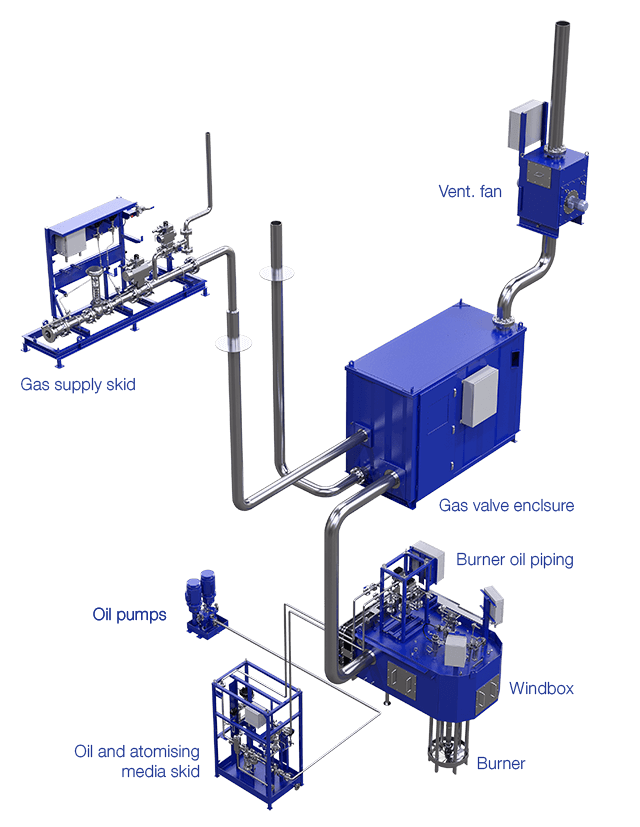

How it works

Dual fuelburner with text web
