Vortex PS Radial Eductor

The Alfa Laval Vortex PS Radial Eductor is a high-performance tank mixing eductor. It is particularly suited to challenging tank mixing tasks, for example, when you are working with irregular shaped tanks or various fluid shearing requirements, or when the liquids have a high solids content.

Alfa Laval Vortex PS Radial Eductor tank mixing eductor product image

Cost-effective solution for in-tank fluid shearing

  • Simple, robust design – no moving parts
  • No maintenance
  • Compact design
  • Dynamically shears fluid and enhances reactions
The Alfa Laval Vortex PS Radial Eductor consists of a uniquely designed body molded from high density, abrasion-resistant polyurethane and featuring the proprietary Lobestar Mixing Nozzle®. It has a stainless steel 76 mm (3 in) male NPT connection: typical installations require one or more mounted on the recirculation piping inside the tank.
.

How it works

Fluid is pumped into the Alfa Laval Vortex PS Radial Eductor inlet where pressure builds at its nozzle. The fluid velocity increases at the nozzle resulting in a pressure drop and a strong vacuum that pulls surrounding fluid into the eductor body through its six peripheral suction ports. The converging fluid streams are dynamically sheared by the nozzle in the eductor’s Venturi throat and discharged into the tank as a high-energy plume.

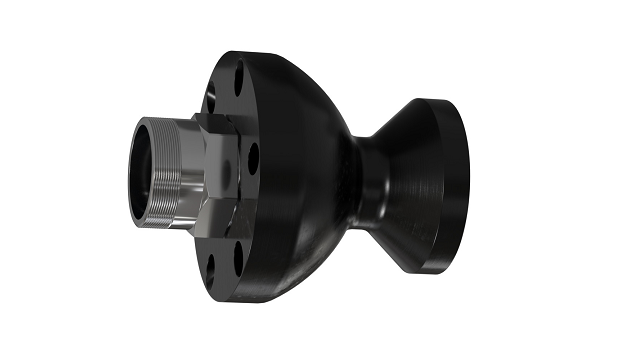

Product image illustrating how the Alfa Laval Vortex PS Radial Eductor works

Learn more

You can read more about the efficiency, practicality and technical details of the Alfa Laval Vortex PS Radial Eductor by downloading the product leaflet.

Two men with blue Alfa Laval jackets and helmets at a production site
.

Ask the experts

If you have any questions about Alfa Laval’s eductor solutions that can improve the safety and efficiency of your fluid shearing, contact us to discuss the various options.
